61.02312 SPARK 20 General Lighting
Connected Load 15W
Colour Temperature 2700/3000/3500/4000K
Colour Rendition Index CRI 90
Optics PC Cover
Beam Angle 110D
Track Low Voltage Track

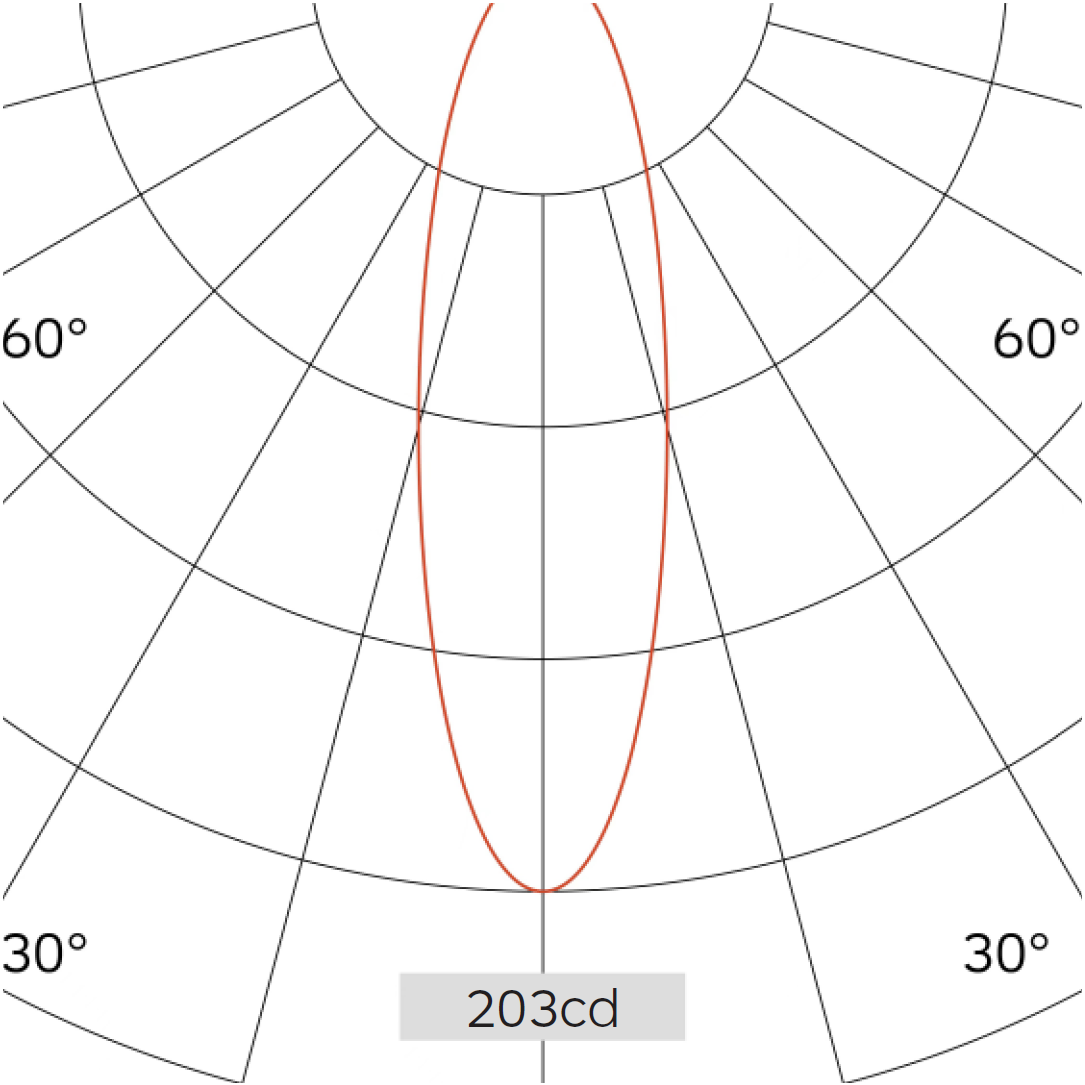

Light Distribution 61.02312 SPARK 20 General Lighting
Luminous Flux Of The Luminaire 562lm
Luminaire Efficacy 41lm/W
Colour Deviation SDCM<5
Light Source LED
LED Type SMD
Dimming Method 1-10V/ Dali
Cover Material Aluminum
Body Material Aluminum
IP Rating IP20
Housing Colour Matt White/ Matt Black
Weight 0.5Kg
Technical Region Input 48V

Light Beam Table

h(m) E(lx) D(m)
110°
1 203 2.86
2 50 5.71
3 22 8.57
4 12 11.42
5 8 14.28
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
