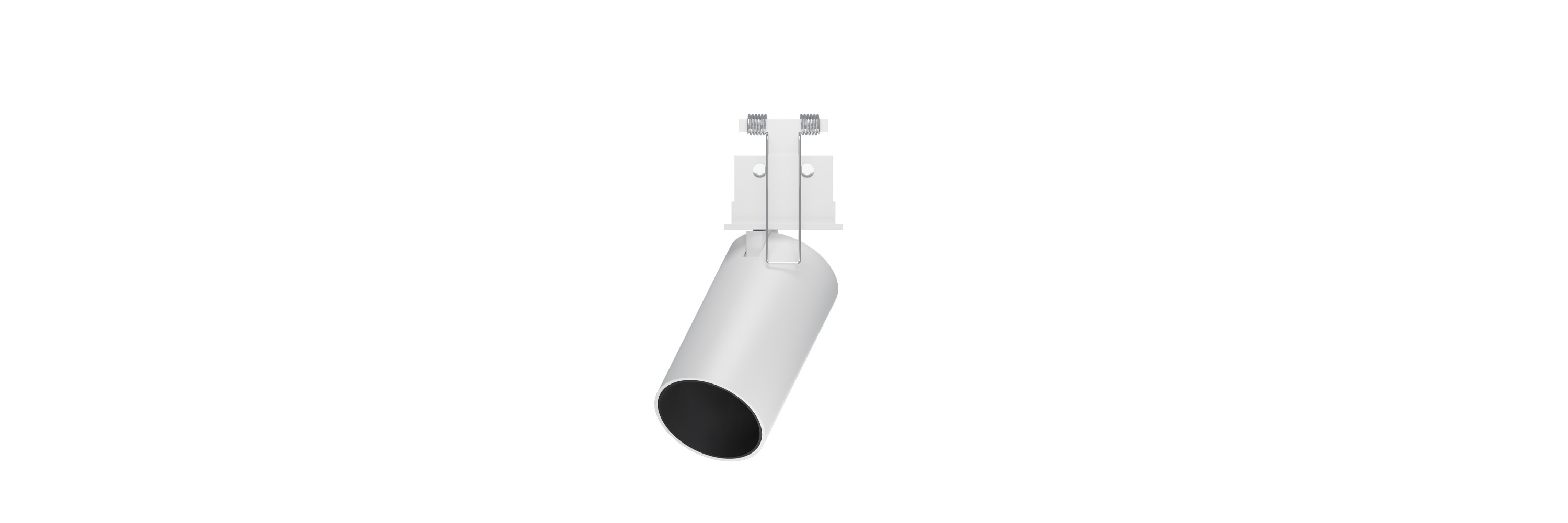

56.03712 NOVAL Semi-recessed Downlight
| Connected Load | 6W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 16D/20D/35D |
| Cut out | 37*37mm |
| Light Distribution | 56.03712 NOVAL Semi-recessed Downlight |
| Luminous Flux Of The Luminaire | 449lm |
| Luminaire Efficacy | 70lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.25Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 20° | ||
| 1 | 2880 | 0.36 |
| 2 | 720 320 180 115 | 0.72 |
| 3 | 320 | 1.08 |
| 4 | 180 | 1.45 |
| 5 | 115 | 1.81 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories

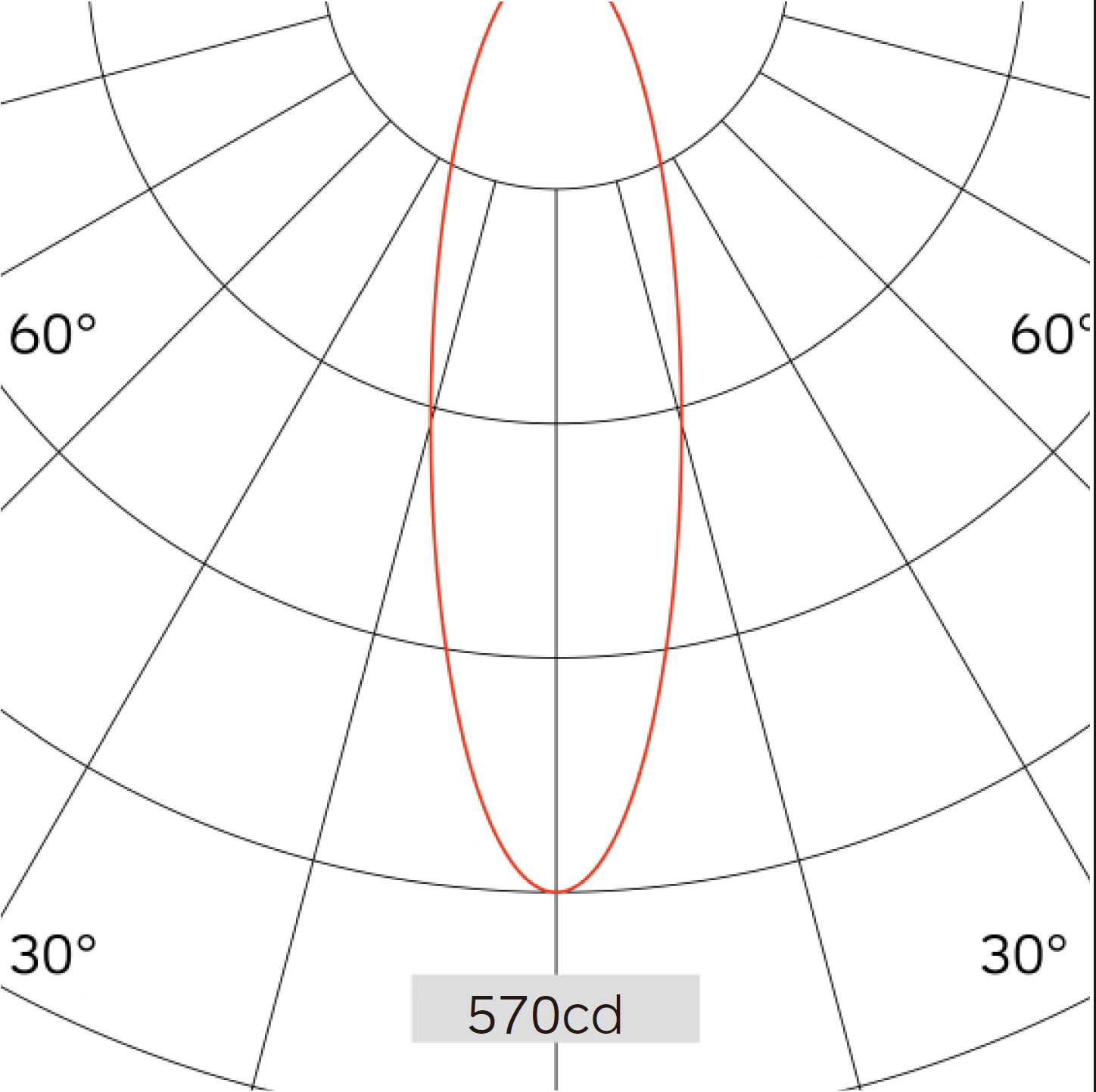

Photometric Files

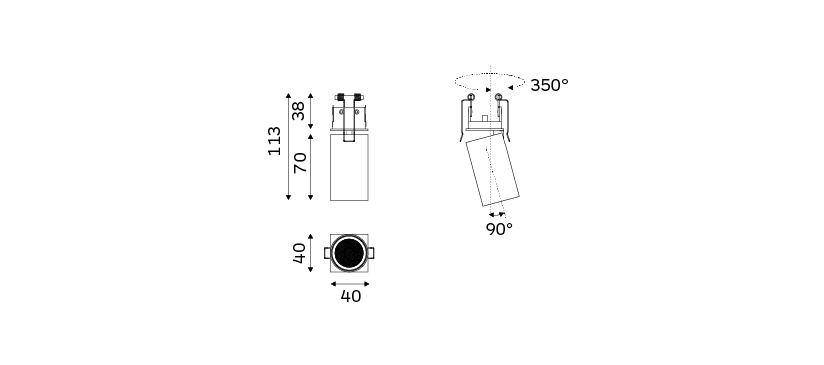

Technical Drawings
