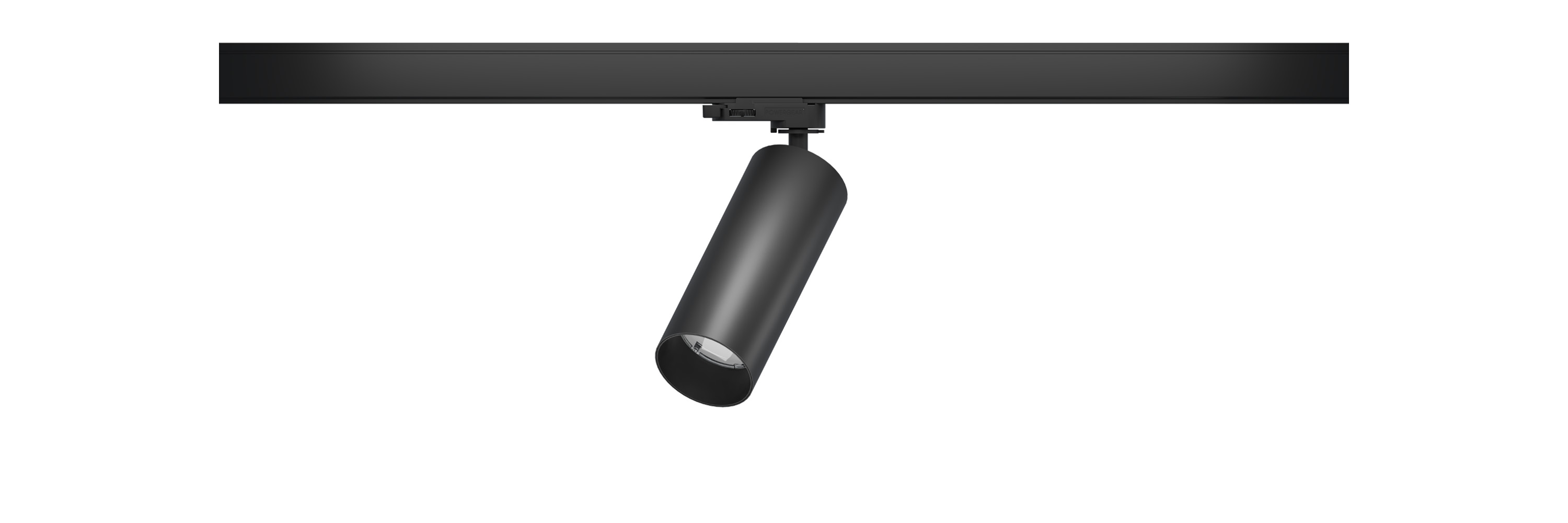

32.06512 FOS Track Lighting
Connected Load 25W
Colour Temperature 2700/3000/3500/4000K
Colour Rendition Index CRI 90
Optics LENS
Beam Angle 17D/26D/32D/41D
Track Phases 1 Circuit/ 3 Circuit
Light Distribution 32.06512 FOS Track Lighting
Luminous Flux Of The Luminaire 2040lm
Luminaire Efficacy 83lm/W
Colour Deviation SDCM<5
Light Source LED
LED Type COB
Dimming Method Triac/1-10V/ Dali
Cover Material Aluminum
Body Material Aluminum
IP Rating IP20
Housing Colour Sandy White/ Sandy Black
Weight 0.85Kg
Technical Region 220-240V 50/60Hz

Light Beam Table

h(m) E(lx) D(m)
26°
1 9512 0.46
2 2378 0.92
3 1056 1.38
4 595 1.47
5 380 2.30
Special back cover construction, can be adjusted 200 times without loosening, perfect proportions.
Interchangeable Opti Beam reflectors and refractors for high lighting efficiency and uniform spread.
Suitable accessories

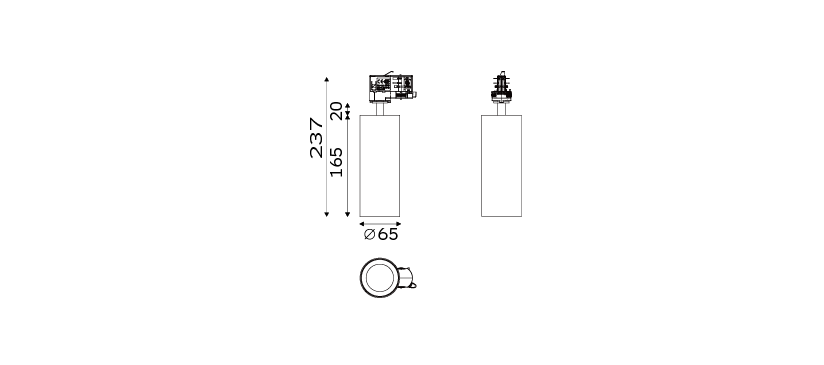

Technical Drawings
